Master Construction Plans & Material Takeoff

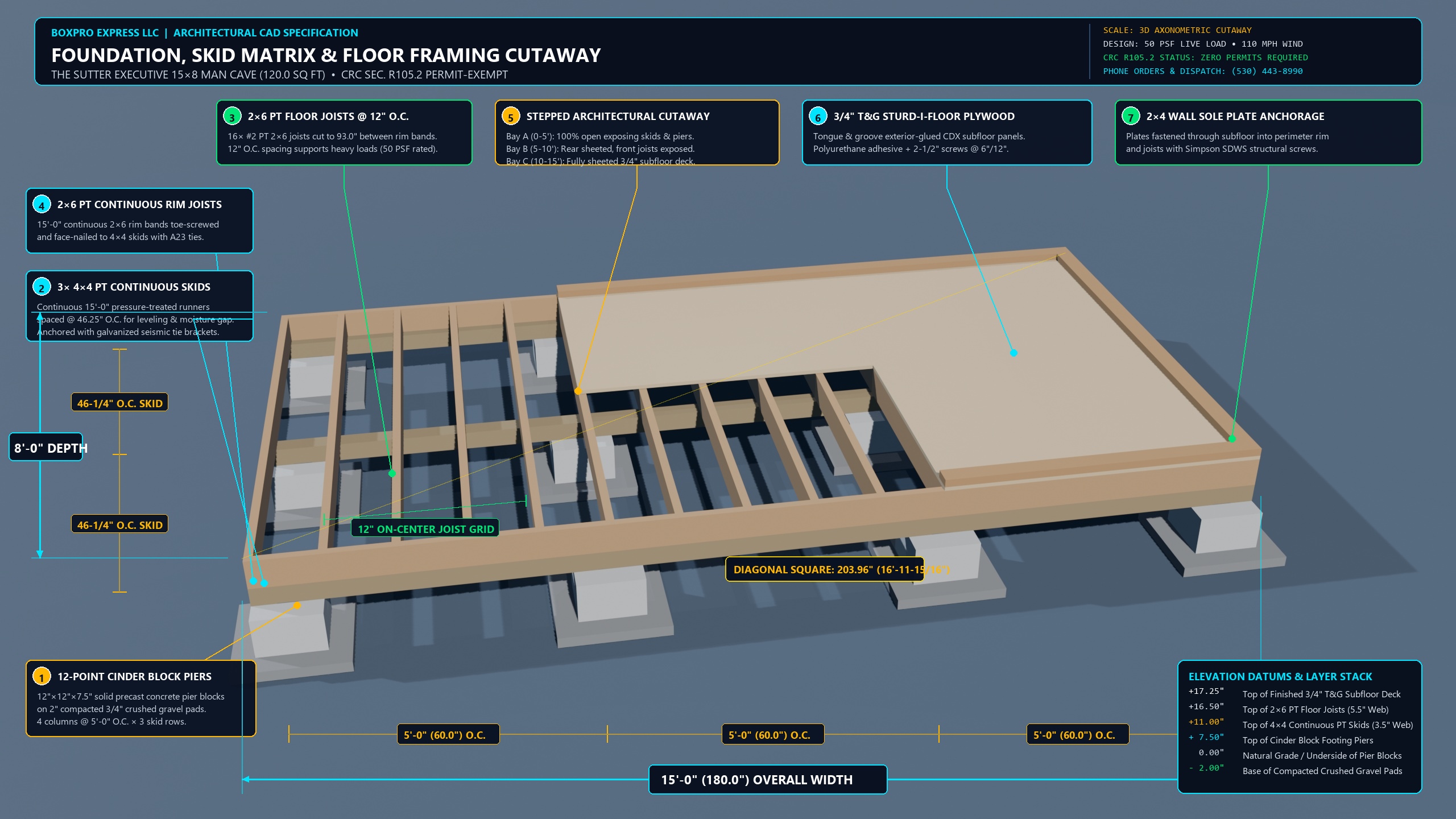

📐 3D Foundation, Skid Placement & Floor Framing Cutaway (Technical Measurements)

Axonometric architectural cutaway detailing the 12-point cinder block pier matrix on compacted gravel pads, 3× 4×4 continuous pressure-treated runners @ 46.25" O.C., 2×6 PT joist grid @ 12" O.C., and stepped 3/4" T&G plywood subfloor deck.

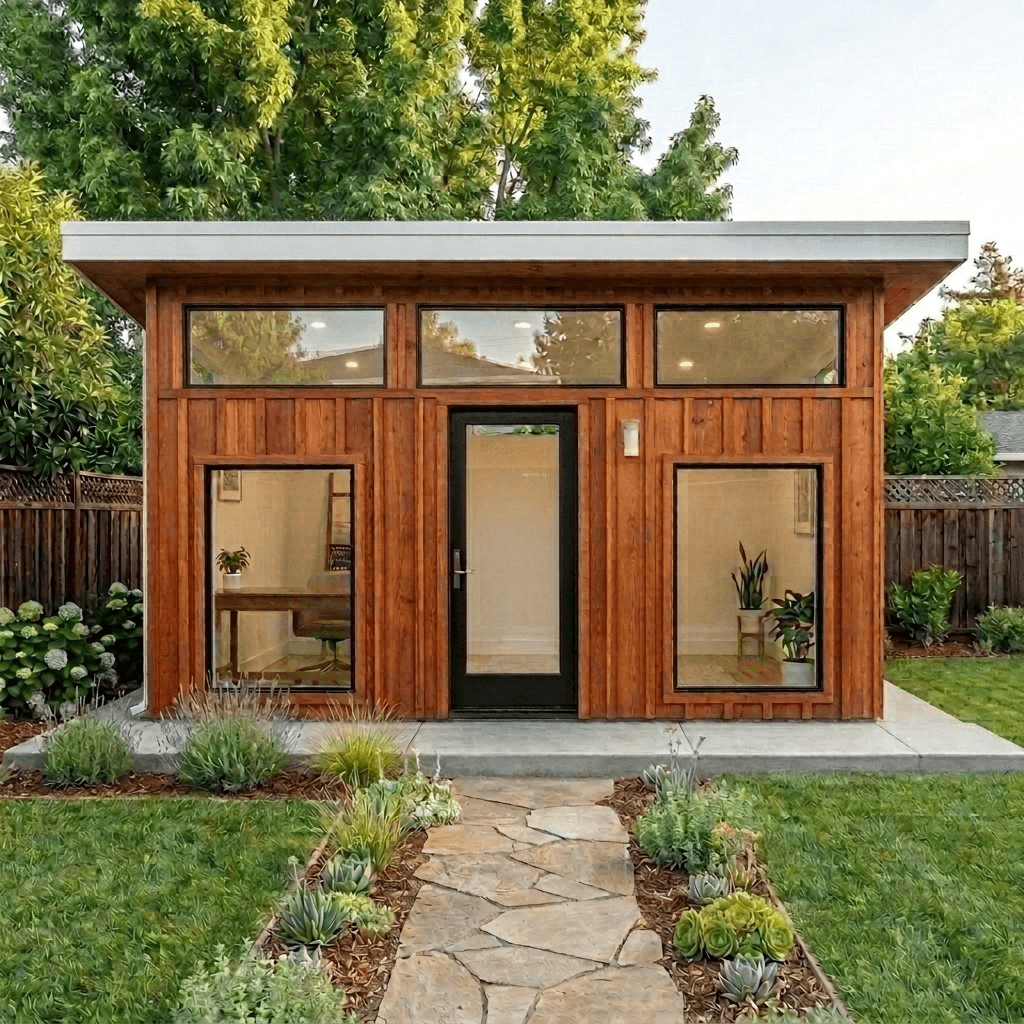

Finished Siding & Glazing Architecture

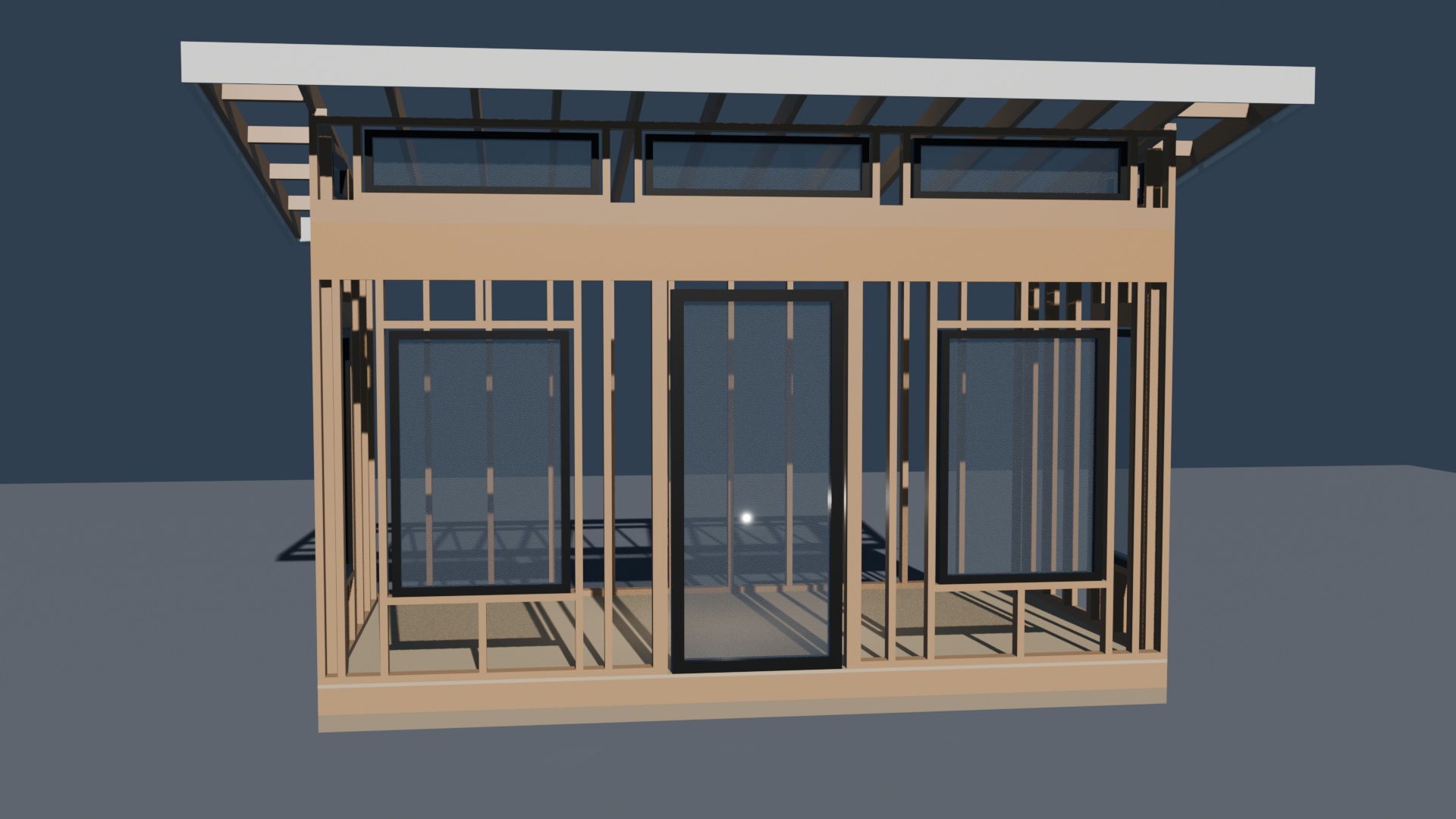

3D Structural Framing Orthographic

Framing Details: Continuous 15' 4×12 Douglas Fir lintel beam @ 81.75" AFF, centered 36" (3-0) exterior full-lite glass door, dual 36"×56" picture windows (16" low sill), 3 clerestory transoms (48"×13.5" RO each), and 20" cantilevered front overhang.

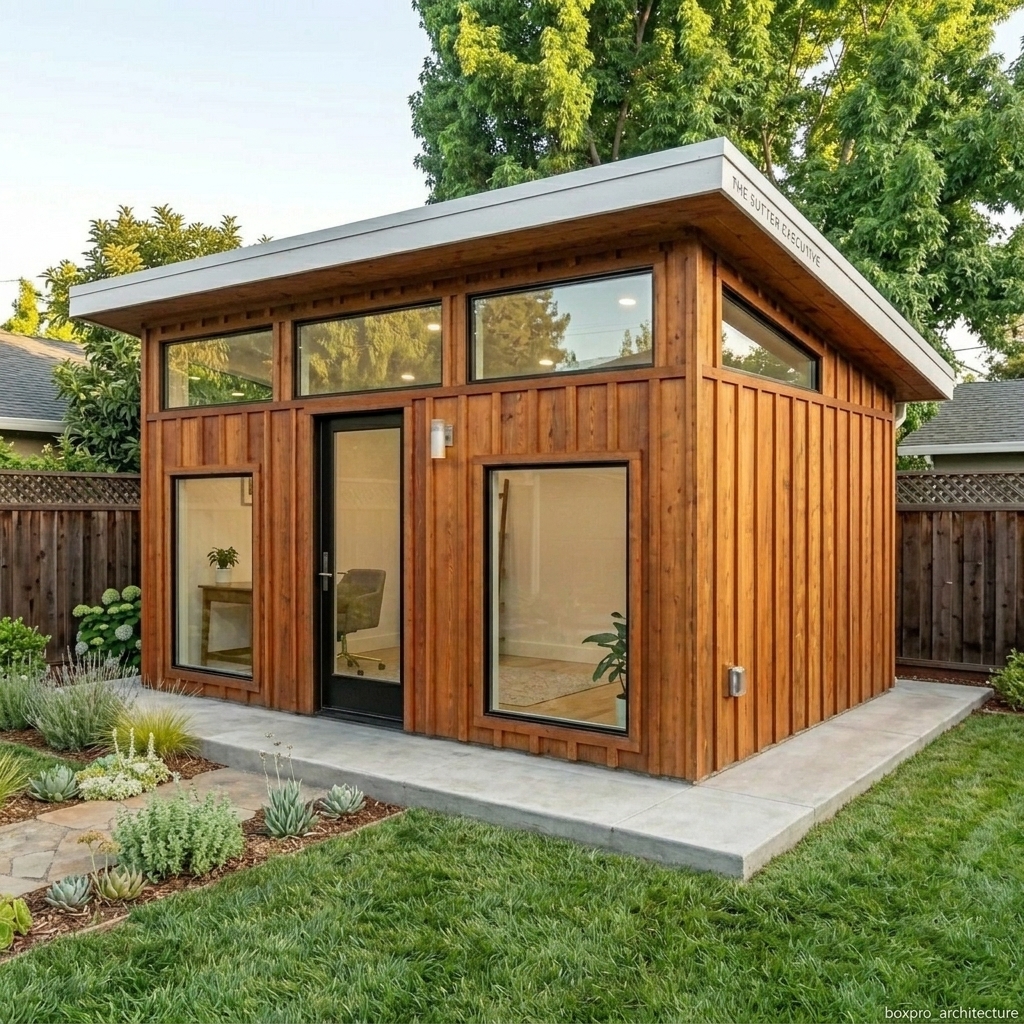

Finished Siding & White Fascia Eave

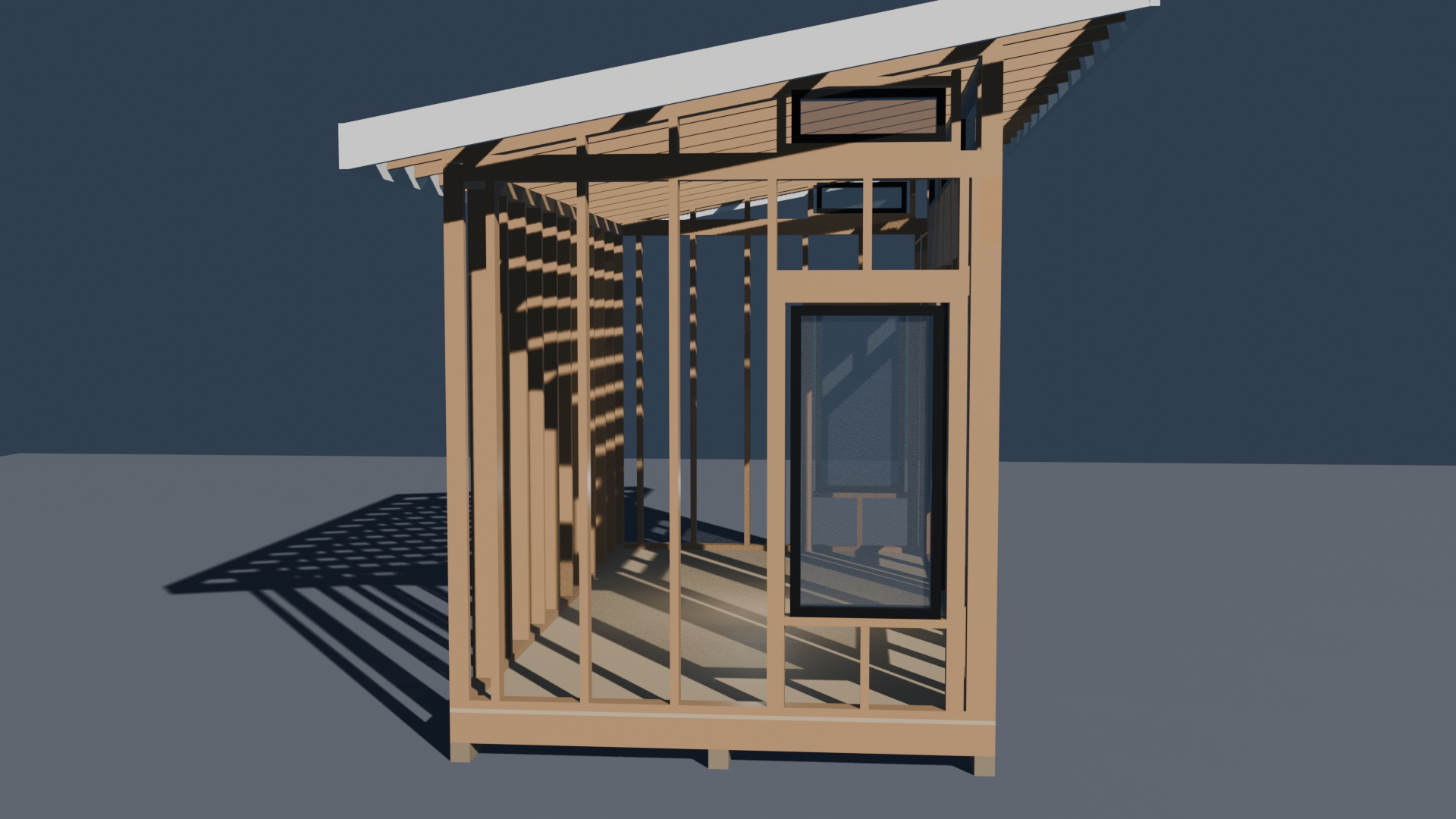

3D Structural Framing Orthographic

Framing Details: Standard 8'-0" perimeter platform wall capped with double top plates @ 96.0" AFF. Features matching 26"×54" low-sill picture window (RO: 28"×56", sill @ 16" AFF, 4×6 header @ 72" AFF) + 26"×9" upper clerestory transom framed inside the triangular rake pony wall, 3 rear shear studs @ 16" O.C., and 18-inch side overhang supported by structural ladder lookouts.

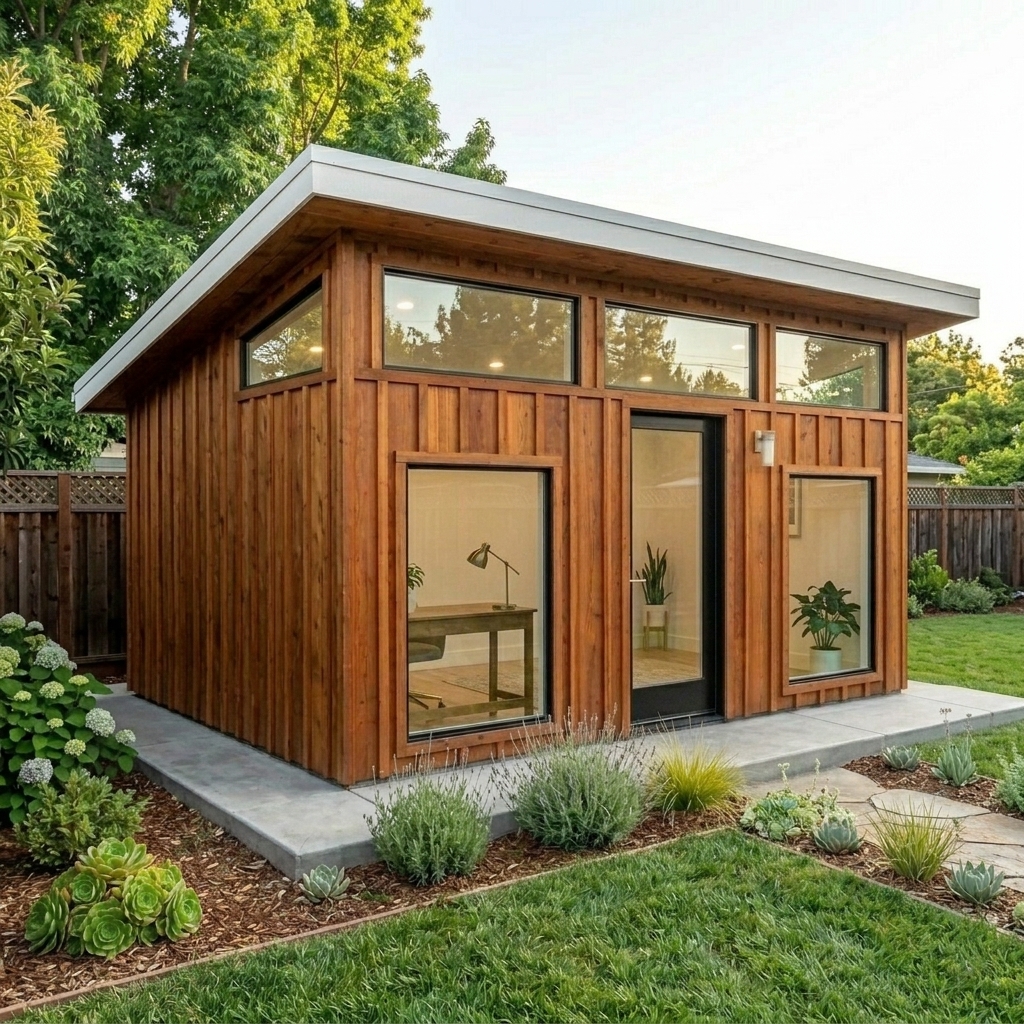

Finished Siding & White Fascia Eave

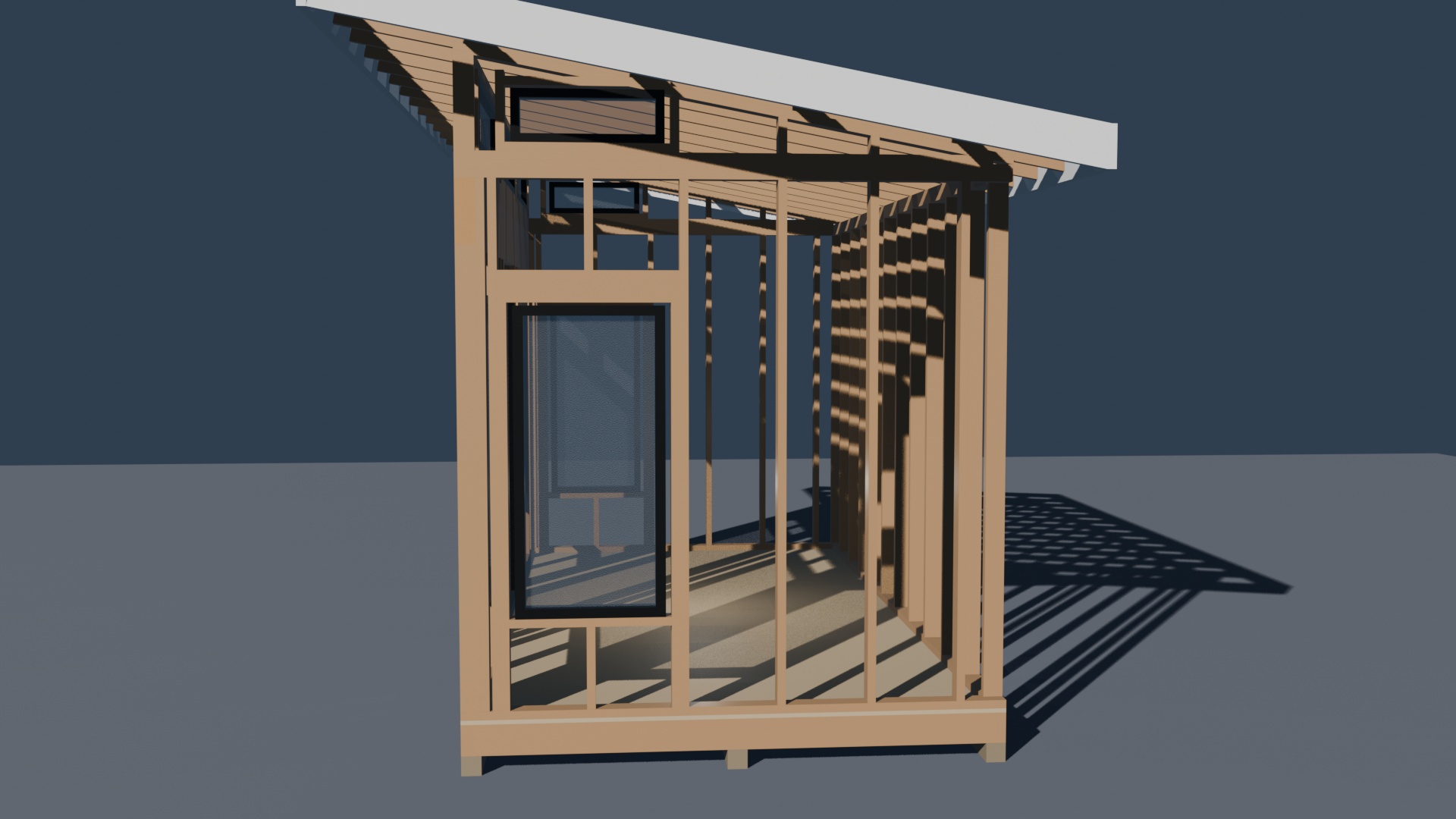

3D Structural Framing Orthographic

Framing Details: Symmetrical 8'-0" platform wall + stacked triangular rake pony wall with matching 26"×54" picture window and 26"×9" upper clerestory transom, 4×6 solid timber header, and 18-inch side overhang with notched outriggers tying back to primary interior rafter.

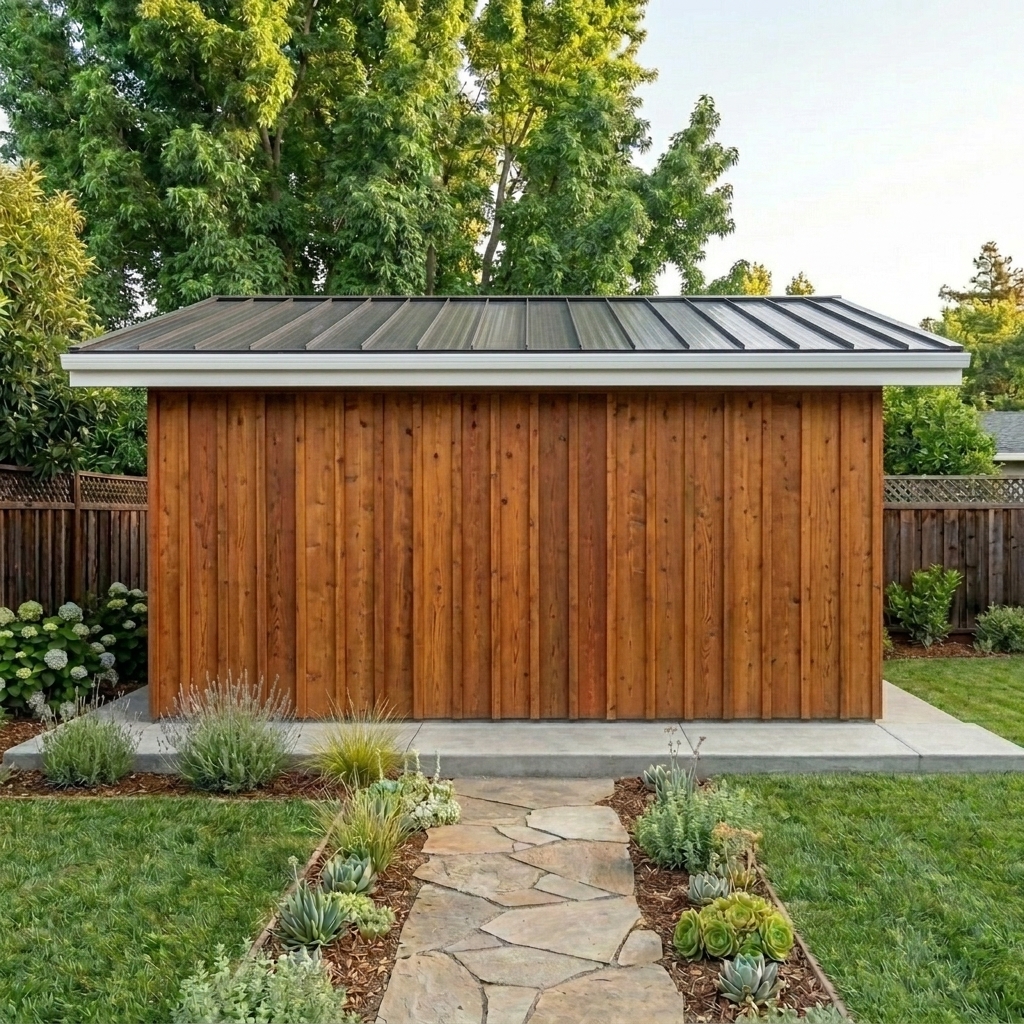

Finished Standing Seam Roof & Siding

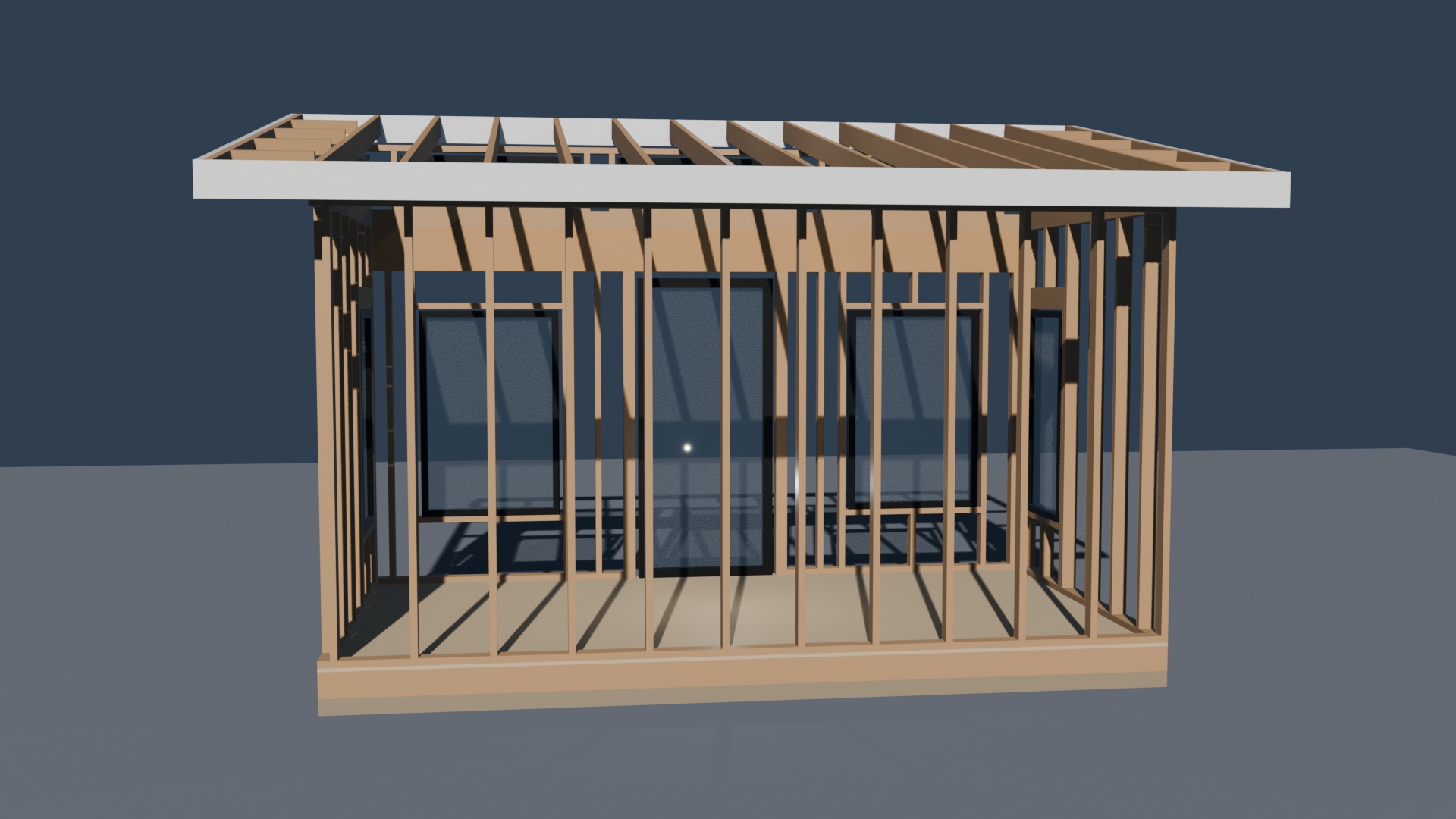

3D Structural Framing Orthographic

Framing Details: 15'-0" Solid shear defense wall: 13 studs @ 16" O.C. (91.5" pre-cut length), double top plate @ 96" AFF, 10" rear rafter overhang, and continuous white fascia.

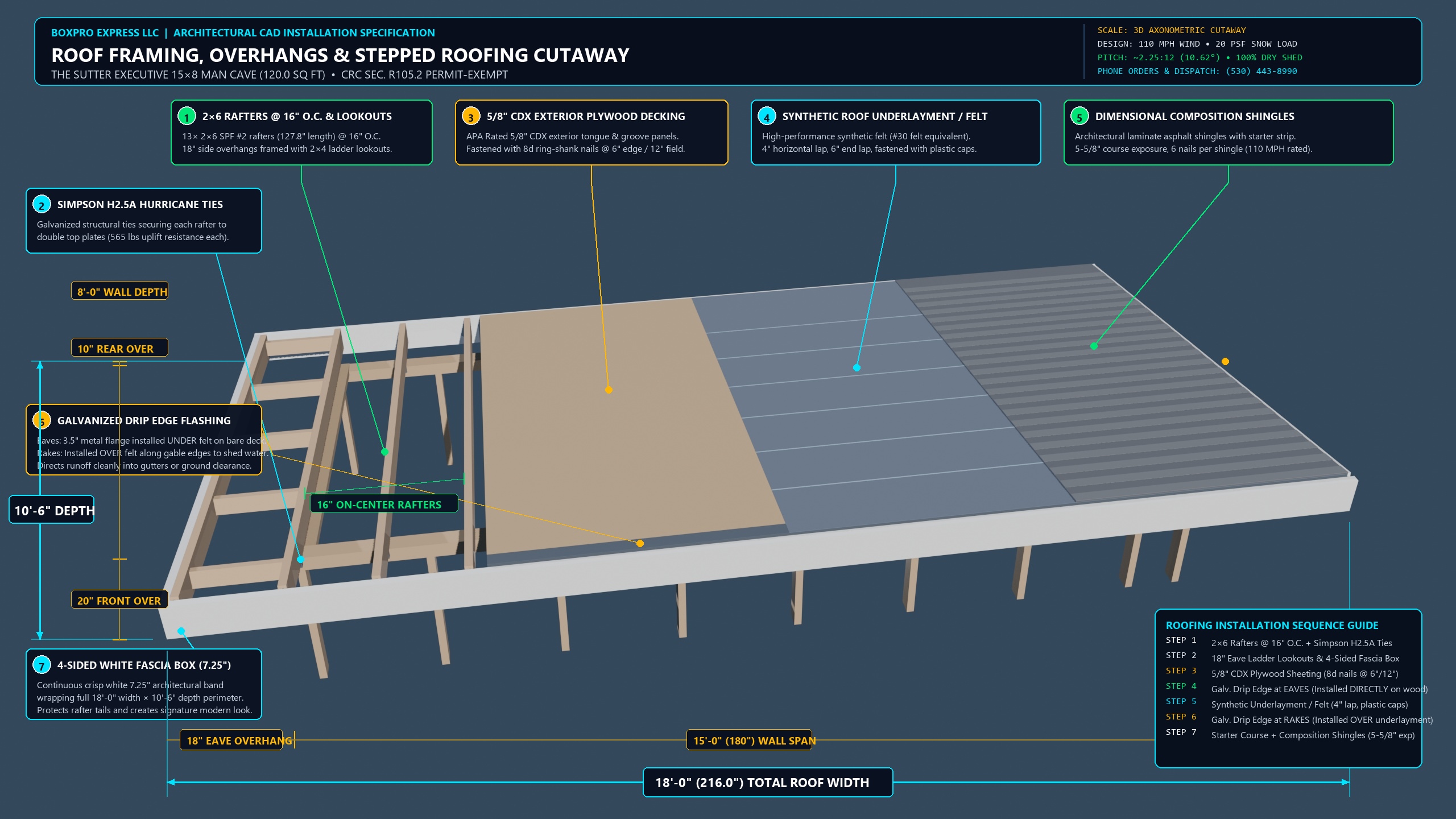

📐 3D Roofing, Overhang & Stepped Installation Cutaway (Technical Measurements)

Axonometric installation cutaway detailing the 13× 2×6 rafters @ 16" O.C., 18" side overhangs with 2×4 ladder lookouts, 20" front cantilever overhang, 4-sided crisp white fascia box, 5/8" CDX plywood deck, galvanized drip edge flashing (eave vs. rake rule), synthetic felt underlayment, and dimensional composition shingles.

📋 Step-by-Step Roofing Installation Sequence & Flashing Guide

• Step 1 (Framing & Ties): Install 13× 2×6 rafters @ 16" O.C. with birdsmouth cuts seated on front high plate (123.75" AFF) and rear low plate (105.75" AFF). Fasten each rafter with Simpson Strong-Tie H2.5A hurricane ties (565 lbs uplift resistance).
• Step 2 (Outriggers & Fascia Box): Frame 18-inch left and right side overhangs using 8× 2×4 ladder lookouts notched across rake cap plates and nailed to 2×6 fly rafters. Mount continuous 7.25" crisp white fascia boards around all 4 sides.
• Step 3 (Roof Sheeting): Fasten 5/8" CDX exterior plywood panels across rafters with 8d ring-shank nails spaced 6" along panel edges and 12" in the field. Maintain a 1/8" expansion gap between sheets.
• Step 4 (Eave Drip Edge): Install galvanized metal drip edge flashing along the front cantilever eave and rear drip edge DIRECTLY ON TOP OF BARE PLYWOOD before underlayment. Nail every 12" staggered.
• Step 5 (Synthetic Underlayment / Felt): Roll out high-performance synthetic roof underlayment starting from the bottom eave upwards. Overlap eave drip edge, maintain 4" horizontal laps and 6" end laps, fastened with plastic cap roofing nails.
• Step 6 (Rake Drip Edge): Install galvanized metal drip edge flashing along left and right side rake edges OVER THE TOP OF SYNTHETIC FELT to prevent wind-driven rain from penetrating the gable edge.
• Step 7 (Composition Shingles): Install architectural starter strip shingles flush with drip edge hem. Lay dimensional composition asphalt shingles with a standard 5-5/8" exposure using 6 nails per shingle for a 110 MPH high-wind warranty.

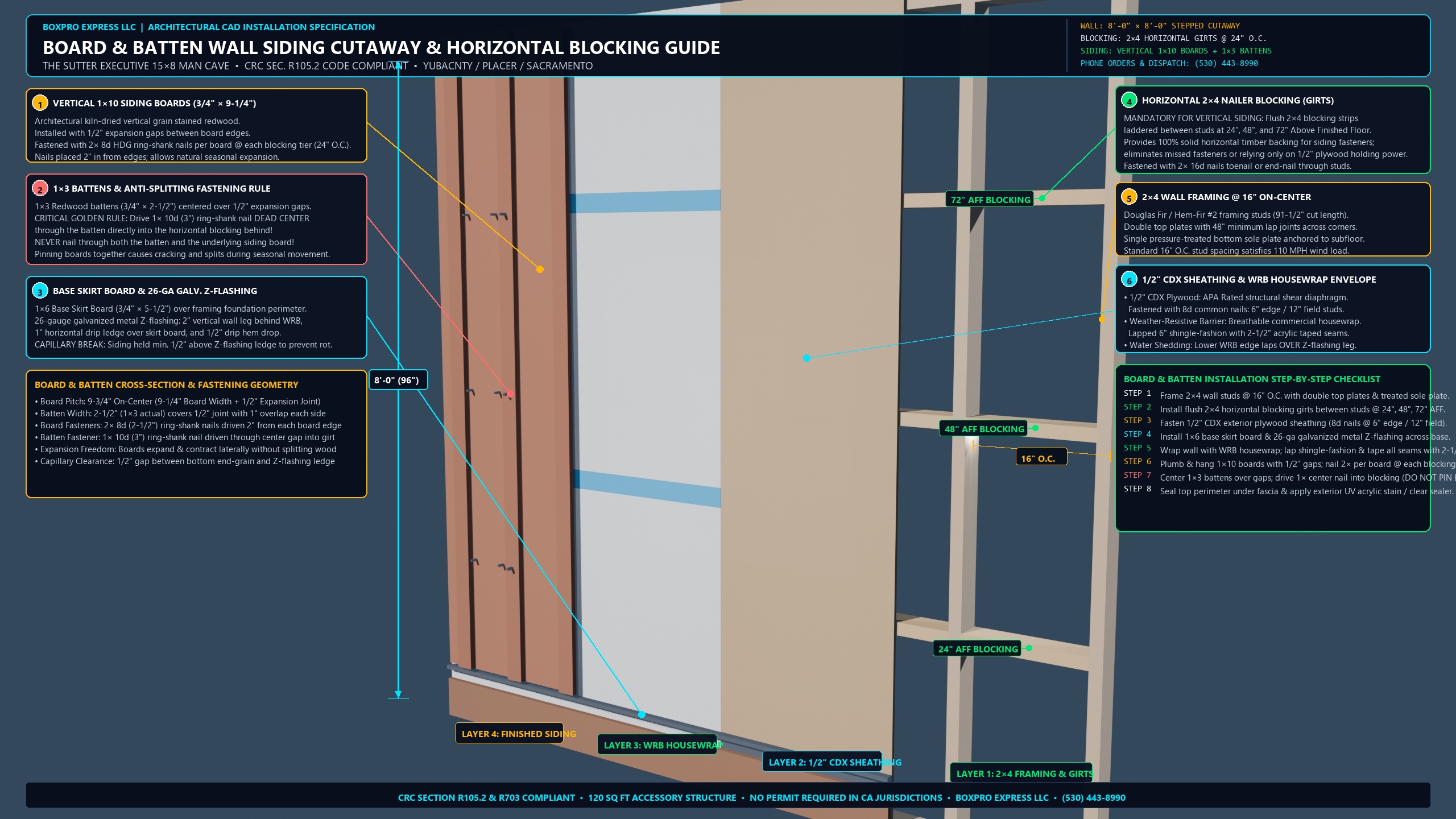

📐 3D Board & Batten Wall Siding, Horizontal Blocking & Fastening Cutaway (Technical Measurements)

Axonometric stepped installation cutaway detailing the 2×4 wall framing @ 16" O.C., flush 2×4 horizontal nailer blocking (girts) @ 24", 48", 72" AFF, 1/2" CDX exterior plywood sheathing, commercial WRB housewrap with taped seams, 1×6 base skirt board with 26-ga galvanized metal Z-flashing, vertical 1×10 redwood siding boards with 1/2" expansion gaps, 1×3 battens, and the anti-splitting center fastening rule.

📋 Critical Fastening Golden Rules & Siding Installation Sequence

• The Anti-Splitting Batten Rule: Fasten 1×3 battens with a SINGLE 10d (3") hot-dipped galvanized ring-shank nail driven DEAD CENTER through the 1/2" gap between boards directly into the horizontal blocking girt. NEVER nail through both the batten and the underlying siding board! Pinning boards together restrains lateral expansion/contraction, causing severe splitting and cracking during California summer/winter cycles.
• Horizontal Nailer Blocking Girts (24" O.C.): Vertical siding requires solid horizontal timber backing. Install flush 2×4 blocking strips between each pair of wall studs at 24", 48", and 72" Above Finished Floor (AFF). Fastened with 2× 16d nails toenail or end-nail through studs. Provides continuous timber purchase across the entire wall.
• Board Fastening Pattern: Fasten 1×10 siding boards (3/4" × 9-1/4") using 2× 8d (2-1/2") HDG ring-shank siding nails per board at each horizontal blocking tier (every 24" vertically). Place nails 2" inward from each board edge, leaving the center unpinned to allow natural expansion.
• Capillary Break Clearance: Hold the bottom end-grain of all vertical boards and battens minimum 1/2" above the horizontal ledge of the galvanized Z-flashing. Never allow wood siding to sit directly in standing water on flashing ledges.
• Weather-Resistive Envelope: 1/2" CDX plywood sheathing (8d nails @ 6" edge / 12" field) covered by commercial breathable housewrap. Horizontal laps min. 6" shingle-fashion, vertical laps 12", and all seams sealed with 2-1/2" acrylic flashing tape. WRB lower edge laps over the 2" vertical leg of the Z-flashing.

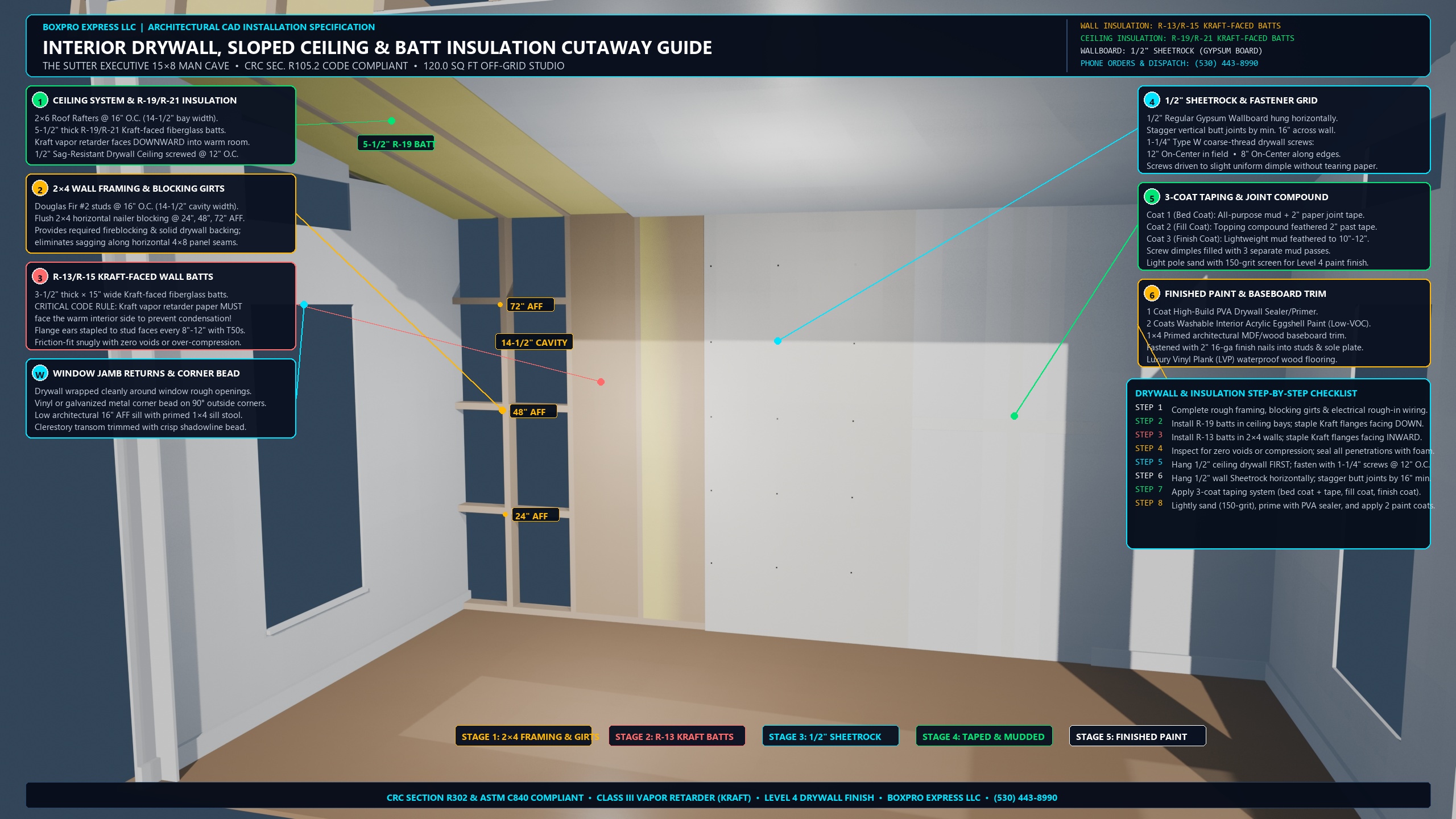

📐 3D Interior Drywall, Sloped Ceiling & Batt Insulation Cutaway (Technical Measurements)

Axonometric interior room cutaway showing all 4 sheetrocked perimeter walls, finished sloped ceiling, 2×6 ceiling rafters with R-19 Kraft-faced insulation cutaway, and the 5-stage rear wall cutaway (2×4 framing & blocking girts, R-13 Kraft-faced batts, bare 1/2" Sheetrock screw grid, 3-coat taped joint compound, and finished painted interior).

📋 Insulation Types, Fastening Patterns & Drywall Installation Sequence

• Wall Insulation Specification: Install R-13 (or R-15 high-density) Kraft-faced fiberglass or mineral wool batts (3-1/2" thick × 15" wide) snugly into all 16" On-Center stud cavities (14-1/2" clear cavity). Friction-fit with zero voids or compression.
• Vapor Retarder Code Requirement (CRC Section R302): The brown Kraft paper vapor retarder MUST face the warm interior living space in California climate zones. Staple the flange ears to the stud faces (or inset-staple to stud sides) every 8" to 12" using heavy-duty T50 staples.
• Ceiling Insulation Specification: Install R-19 (or R-21 high-density) Kraft-faced batts (5-1/2" to 6-1/4" thick × 15" wide) into the 2×6 roof rafter bays. Kraft paper vapor retarder faces DOWNWARD toward the room interior.
• Ceiling Drywall Installation: Always hang ceiling drywall BEFORE wall drywall. Use 1/2" Sag-Resistant Gypsum Ceiling Board or 5/8" Type X Drywall installed perpendicular to rafters. Fasten with 1-1/4" Type W coarse-thread drywall screws spaced 12" On-Center.
• Wall Drywall (Sheetrock) Installation: Hang 1/2" regular gypsum panels horizontally across studs. Stagger vertical butt joints by minimum 16" between rows. Fasten with 1-1/4" Type W screws spaced 12" On-Center in the field and 8" On-Center along panel edges. Drive screw heads to a uniform shallow dimple without tearing the face paper.
• 3-Coat Joint Finishing System (Level 4 Finish):
  • Coat 1 (Bed Coat): Embed 2" paper joint tape into all-purpose joint compound over recessed tapered joints; wipe smooth.
  • Coat 2 (Fill Coat): Apply topping compound feathered 2" to 3" beyond the tape edges.
  • Coat 3 (Finish Coat): Apply lightweight finish mud feathered out 10" to 12" wide. Spot-fill all screw dimples with 3 coats. Lightly sand with 150-grit drywall sanding screen.
• Interior Priming & Paint: Apply 1 full coat of high-build PVA drywall primer/sealer to equalize porosity between paper and joint compound. Finish with 2 coats of washable interior acrylic eggshell paint (Low-VOC).

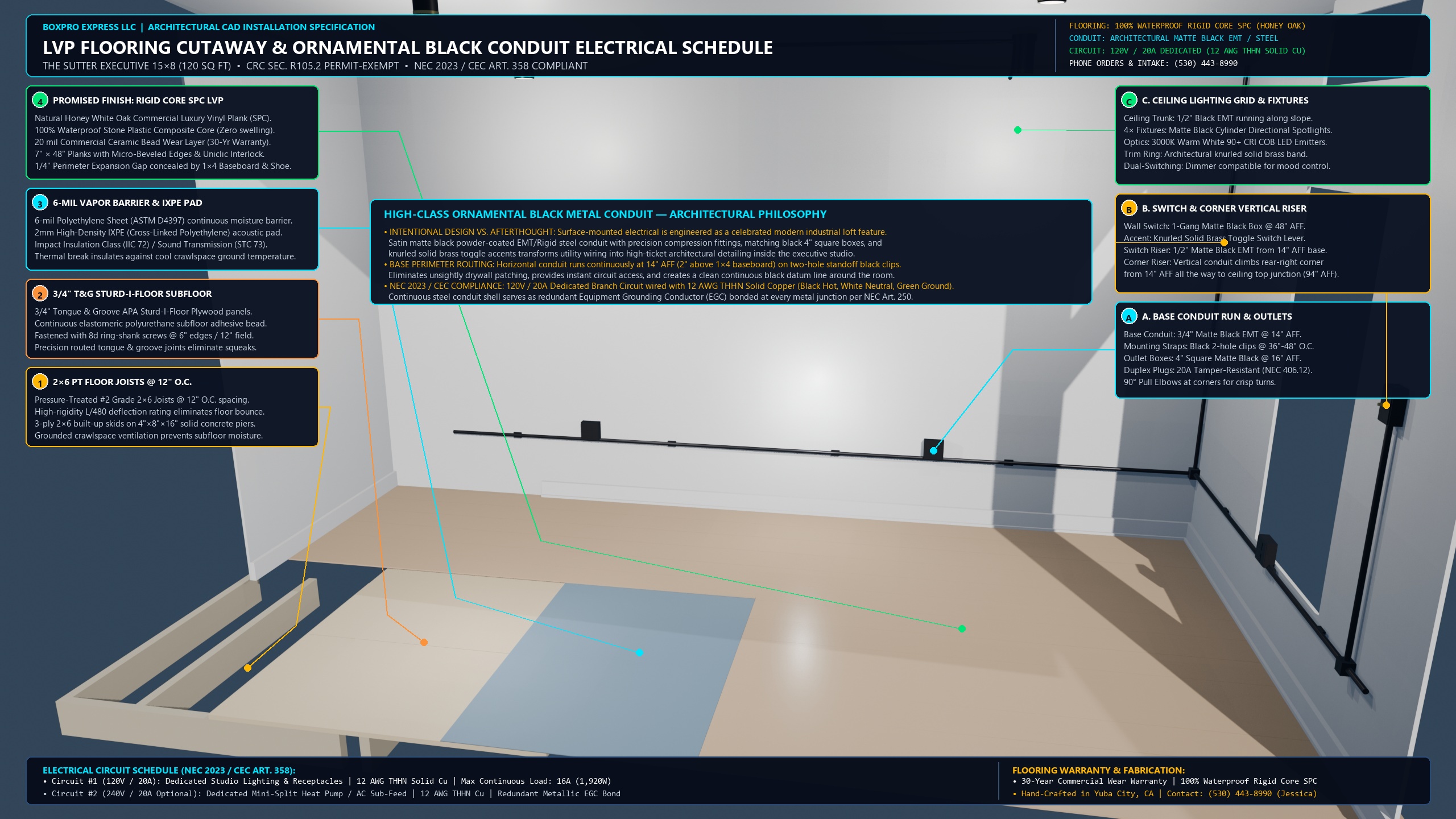

📐 3D LVP Flooring Stepped Cutaway & Ornamental Black Conduit Electrical Schedule

Architectural interior perspective showcasing the promised Natural Honey White Oak Rigid Core SPC Luxury Vinyl Plank flooring with stepped substructure cutaway (2×6 joists @ 12" O.C., 3/4" Sturd-I-Floor plywood, 6-mil vapor barrier, 2mm IXPE acoustic pad) and the high-class ornamental matte black metal conduit electrical schedule (perimeter base run @ 14" AFF, duplex boxes @ 16" AFF, wall switch with knurled brass toggle @ 48" AFF, corner vertical riser to ceiling, and 4× architectural cylinder spotlights).

📋 Promised Flooring Specifications & Stepped Substructure Stack

• Promised Flooring Material: Commercial-Grade 100% Waterproof Rigid Core SPC (Stone Plastic Composite) Luxury Vinyl Plank in Natural Honey White Oak / Coastal Warm Oak architectural finish.
• Wear Layer & Longevity: 20 mil commercial polyurethane wear layer with ceramic bead infusion. 100% pet-proof, scratch-resistant, and high-heel/office-chair dent proof backed by a 30-Year Commercial Wear Warranty.
• Plank Dimensions & Interlock: 7.0" Width × 48.0" Length × 5.5mm core thickness with pre-attached 1.5mm–2.0mm high-density IXPE acoustic underlayment pad. Precision Uniclic angle-tap interlock.
• Layer 1 — Floor Framing Substructure: 2×6 Pressure-Treated #2 Grade Joists spaced strictly @ 12" On-Center (L/480 deflection rating eliminates bounce) over 3-ply 2×6 skids and concrete piers.
• Layer 2 — Subfloor Deck: 3/4" Tongue & Groove APA Sturd-I-Floor Plywood panels fully glued with heavy-duty elastomeric polyurethane adhesive and fastened with 2-1/2" 8d ring-shank screws @ 6" edge / 12" field.
• Layer 3 — Vapor Defense & Acoustic Isolation: 6-mil continuous polyethylene sheet (ASTM D4397) preventing crawlspace humidity infiltration, paired with 2mm high-density IXPE foam achieving Impact Insulation Class (IIC 72) and Sound Transmission Class (STC 73).
• Perimeter Expansion Tolerance: Continuous 1/4" to 3/8" expansion gap around all perimeter walls, neatly concealed by 1×4 Eased-Edge Baseboard and matching shoe moulding.

⚡ High-Class Ornamental Black Metal Conduit Electrical Schedule (NEC 2023 / CEC)

• Intentional Architectural Loft Design: Surface-mounted electrical is executed as an intentional industrial modern feature rather than a builder afterthought. Satin matte black powder-coated EMT/Rigid steel conduit with precision compression fittings, matching black 4" square junction boxes, and solid knurled brass toggle hardware creates an executive commercial studio ambiance.
• Base Perimeter Routing: 3/4" Matte Black EMT conduit runs continuously at 14" Above Finished Floor (AFF) (2" above 1×4 baseboard) supported on two-hole standoff black brackets spaced ≤48" O.C. Eliminates drywall patching, provides instant circuit access, and establishes a clean black datum line around the room.
• Duplex Receptacles (Outlets): 4" Square Matte Black Surface Boxes with industrial raised covers mounted @ 16" AFF (commercial ADA standard). Outlets equipped with 20A commercial-grade tamper-resistant duplex plugs (NEC 406.12) spaced every 6'-0" along perimeter walls.
• Wall Switch & Knurled Brass Hardware: 1-Gang Matte Black Box @ 48" AFF beside the entry door with solid knurled brass toggle switch lever. Fed by a 1/2" vertical riser conduit from the 14" AFF base line.
• Corner Riser & Ceiling Lighting Grid: Vertical 1/2" black conduit climbs the rear-right corner from 14" AFF up to 94" AFF ceiling junction. Sloped ceiling conduit branches across rafters feed 4× Architectural Matte Black Cylinder Spotlights (3000K warm white 90+ CRI COB LED emitters, 850 lumens each, knurled brass accent rings, dimmer compatible).
• Circuit Sizing & Equipment Grounding:
  • Circuit #1 (120V / 20A): Dedicated Studio General Lighting & Receptacles | 12 AWG THHN Solid Copper (Black Hot, White Neutral, Green Ground) | Max Continuous Load: 16A (1,920W).
  • Circuit #2 (240V / 20A Optional): Dedicated Mini-Split Heat Pump / AC Sub-Feed | 12 AWG THHN Solid Copper.
  • Grounding & Bonding: Continuous steel conduit system provides redundant equipment grounding conductor (EGC) bonded at every metal junction per NEC Article 250 / CEC Article 250.

📐 3D Executive Turnkey Interior: Entertainment Suite, Mounted 4K TV, Walnut Slab Bar & Commercial Draft Beer Taps

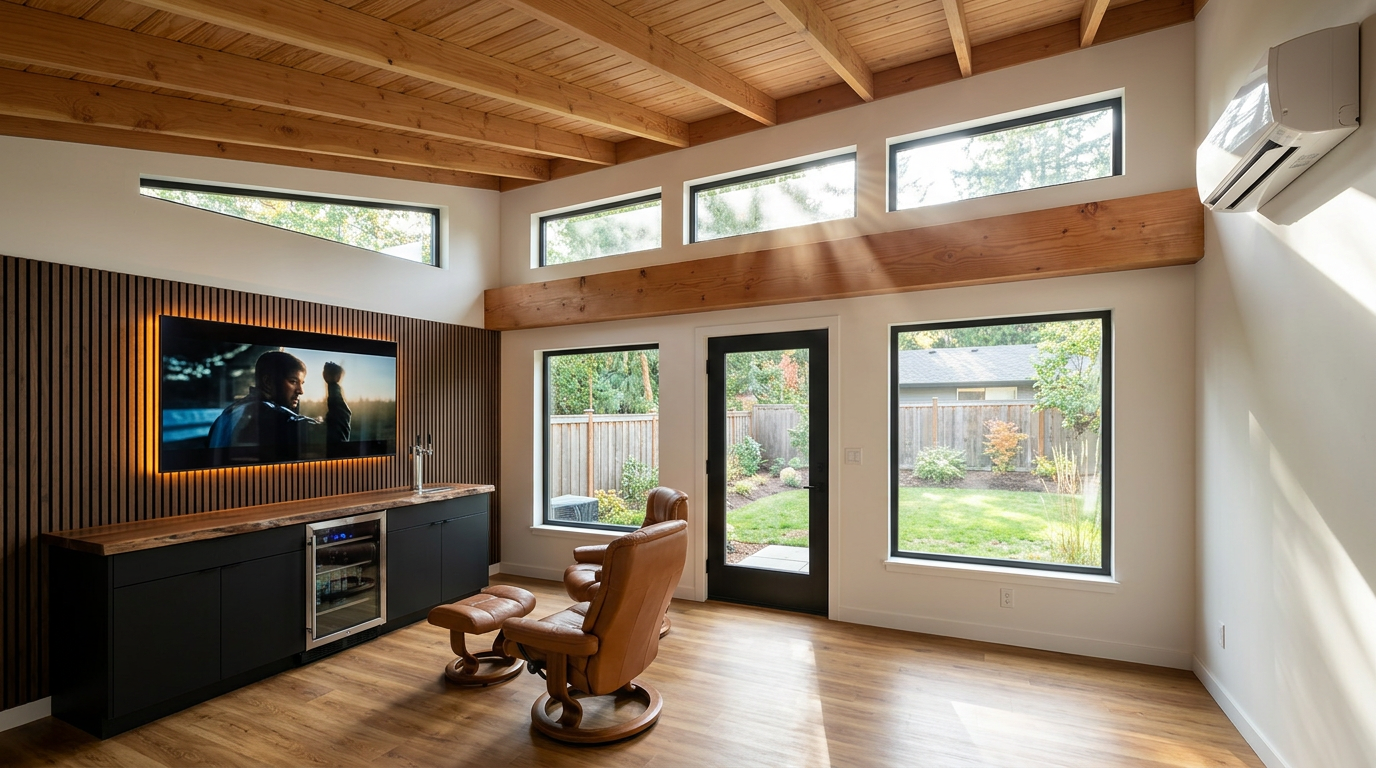

View A — Master Entertainment Wall & Panoramic Glazing: Highlights the full architectural glazing package: 3 upper horizontal clerestory transoms running across the front wall header, separated by the continuous 15' 4×12 solid timber lintel beam above the centered 36" black aluminum full-lite door and dual low-sill picture windows. High on the left rake wall, the sloped clerestory rake window lets in ambient California daylight. Outfitted with vertical walnut acoustic slat wall, mounted 75" 4K TV, overhead mini-split, live-edge California walnut bar top with commercial draft tap & beverage cooler, cognac leather recliner, and honey oak SPC flooring.

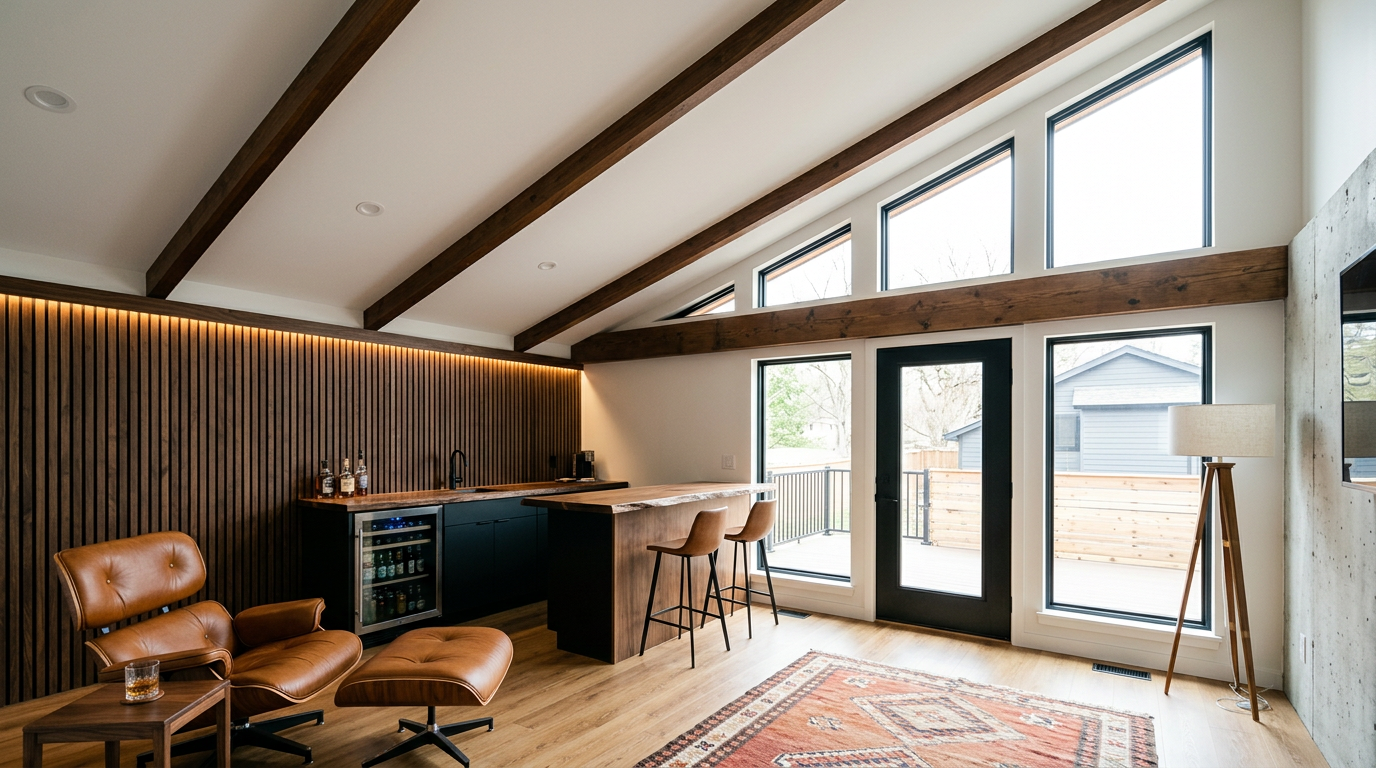

View B — Executive Lounge & Gable Rake Glazing: Reverse perspective showcasing the right rake gable wall with its angled upper clerestory transom window nestled in the roof pitch, flooding the room with natural light. Features the continuous front clerestory transoms and solid timber beam, mid-century cognac leather lounger with ottoman, handcrafted live-edge solid walnut bar credenza with beverage cooler, illuminated backbar bottle display, and exposed timber rafters.

📋 Included Executive Turnkey Upgrades (Included in $23,950 All-Inclusive Investment)

• Dark Acoustic Wood Slat Media Wall: Handcrafted Scandinavian vertical dark walnut slats mounted on 0.5" high-density black PET recycled polyester acoustic felt. Noise Reduction Coefficient: NRC 0.85 (absorbs 85% of vocal echo for crystal-clear acoustics and entertainment).
• Mounted 65"-75" 4K TV & Soundbar Prep: Pre-wired recessed low-voltage media box centered on the slat wall with concealed in-wall HDMI 2.1 conduit, dual quad 120V surge-protected receptacles, slim horizontal soundbar mount, and warm amber LED halo perimeter backlighting.
• Built-In Beverage Bar, Live-Edge Slab & Concealed Kegerator / Mini Fridge: Continuous 2.5" thick live-edge California walnut bar counter atop custom matte black and walnut credenza cabinetry housing a commercial-grade glass-door beverage cooler and an under-counter front-venting triple-tap kegerator system with wood-matching door panel, door key lock, and brushed stainless draft tower.
• Promised Honey Oak SPC LVP Flooring: 100% Waterproof Rigid Core SPC vinyl planks with 20 mil commercial wear layer, 2mm IXPE acoustic pad (IIC 72), and 1/4" perimeter expansion gap concealed beneath 1×4 baseboards.

❄️ 9,000 BTU Inverter Mini-Split Heat Pump (HVAC Climate Engineering)

• Efficiency & Dual Climate Control: High-efficiency variable-speed DC inverter heat pump rated at 20+ SEER2 / 10+ HSPF2. Provides rapid cooling and heating across California climate extremes (-5°F to 115°F ambient).
• Whisper-Quiet Sound Profile: 19 dB Sleep Mode / 24 dB Normal Operation—completely silent on microphone during Zoom calls and client audio recordings.
• Wall-Mounted Indoor Air Handler: Slimline matte white architectural cabinet mounted @ 76" AFF on the rear-right wall; features hidden-until-lit glowing 72°F digital LED temperature readout and motorized multi-directional louvers.
• Line Set & Condensate Wall Sleeve: 3.0" heavy-duty PVC wall sleeve drilled through rear 2×4 wall cavity angled 1/4" per foot downward for gravity condensate drainage. Includes insulated copper suction/liquid refrigerant lines, 5/8" drain hose, and 14/4 AWG stranded shielded interconnect cable encased in matching exterior slimduct.
• Dedicated AC Disconnect Switch: 1/2" matte black conduit riser connecting base raceway to a 30-Amp Non-Fused AC Disconnect Switch mounted beside the indoor unit at 70" AFF.

⚡ The Power Pack: 3.84 kWh LiFePO4 Energy System & 800W Solar Array

• High-Capacity LiFePO4 Energy Hub: Anker SOLIX F3800 Heavy-Duty LiFePO4 Energy Hub (3,840 Watt-hours nominal capacity) with 6,000W Pure Sine Wave AC Inverter (120V / 240V split-phase output; 9,000W surge capacity). Rated for 3,000+ cycles to 80% capacity (10+ years daily cycling).
• Rooftop Solar Array: 2× 400W (800W Total) Tier 1 Monocrystalline Solar Panels mounted to standing seam metal roof using non-penetrating S-5 clamps. 1/2" matte black EMT conduit brings DC solar feed down to subpanel.
• Surface-Mounted Solar Subpanel & Transfer Switch: 8-Circuit Matte Black Surface-Mount Enclosure @ 46" AFF on east rake wall with dual-breaker mechanical interlock switch (toggles seamlessly between Utility Grid AC and Power Pack Off-Grid Battery).
• Power Autonomy & Load Calculation Table:
  • Executive Workstation Load (150W total - Laptop, Dual 4K Displays, LED Spotlights): 25.6 Hours Continuous Battery Runtime.
  • HVAC Mini-Split Modulated Cooling (350W–650W typical steady-state): 6.0 to 11.0 Hours Battery Runtime Alone; Infinite Daytime Runtime when supported by 800W rooftop solar generation (~500W–750W solar input in Northern California sun).
  • Annual Solar Yield: Generates ~1,350 kWh annually in Yuba City / Lincoln / Roseville, resulting in a $0 studio electricity bill forever.
